Installing a Honeycomb

The honeycomb reduces the beam angle and stops ambient spill of light. This works great in with the standard diffuser in the second slot.

1. Slide the honeycomb into the first filter rail.

2. Push top latch down to engage the lock on each side.

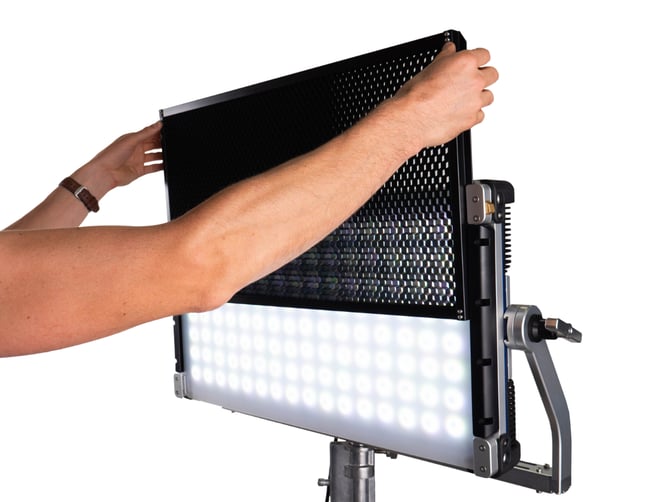

1. Place the bottom edge of the honeycomb into the guides at the bottom of the fixture.

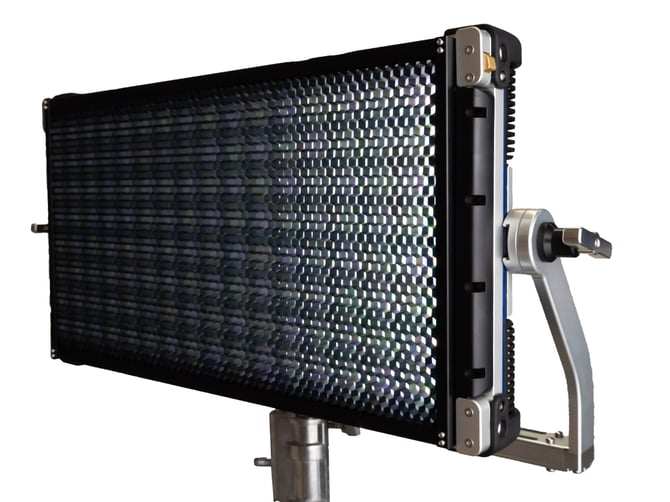

2. Push the top of the honeycomb towards the light until you hear and feel the click.
